SZIT PNP: Access your files and print

How to set up file access to pnp.cs.bme.hu and print via ssh.

File Access from Windows

Installs

Install the required software from https://winfsp.dev/rel/:

• WinFSP
• SSHFS-Win (x64)

Network Drive Setup

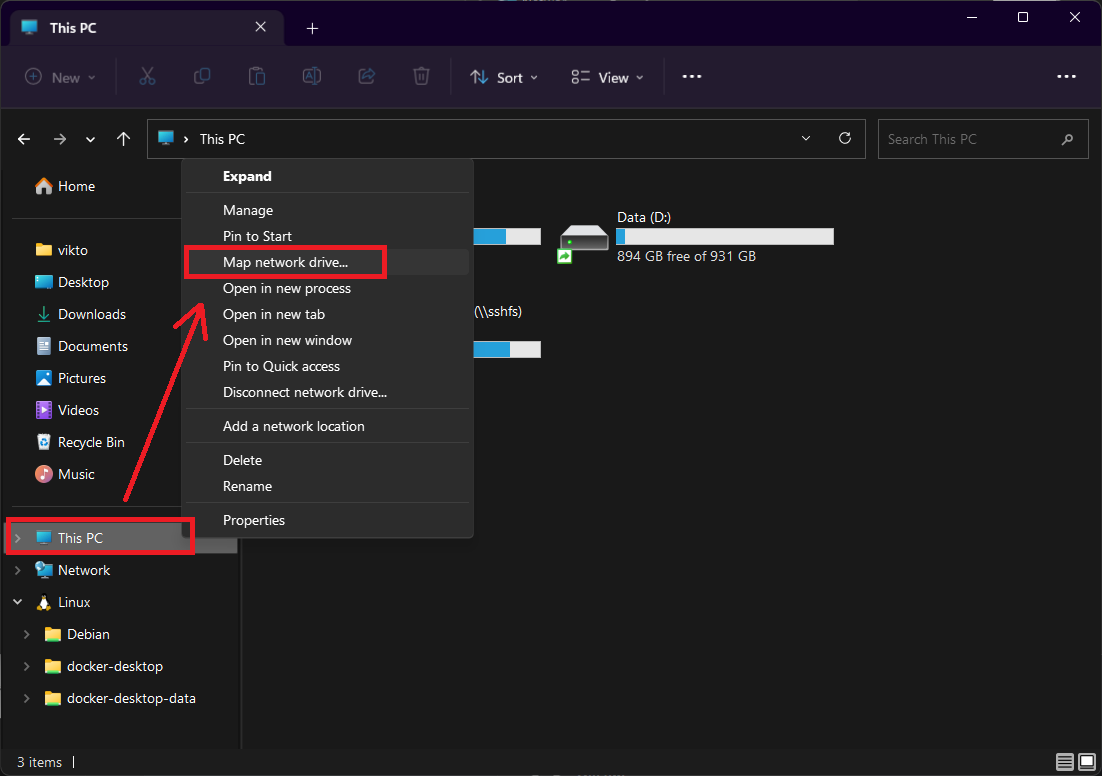

1. Open File Explorer
2. Right-click on "This PC"
3. Select "Map network drive..."

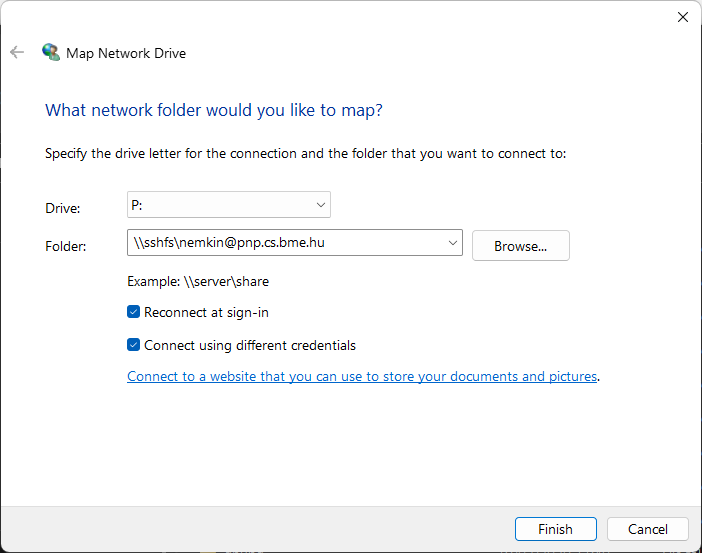

Configure the network drive with these settings:

• Drive: Select any available letter
• Folder: \\sshfs\YOUR_USERNAME@pnp.cs.bme.hu
• Select "Reconnect at sign-in"
• Select "Connect using different credentials"

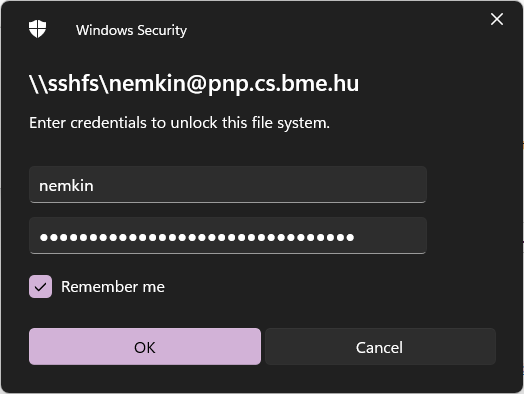

Enter your credentials (username and password to pnp.cs.bme.hu) when prompted:

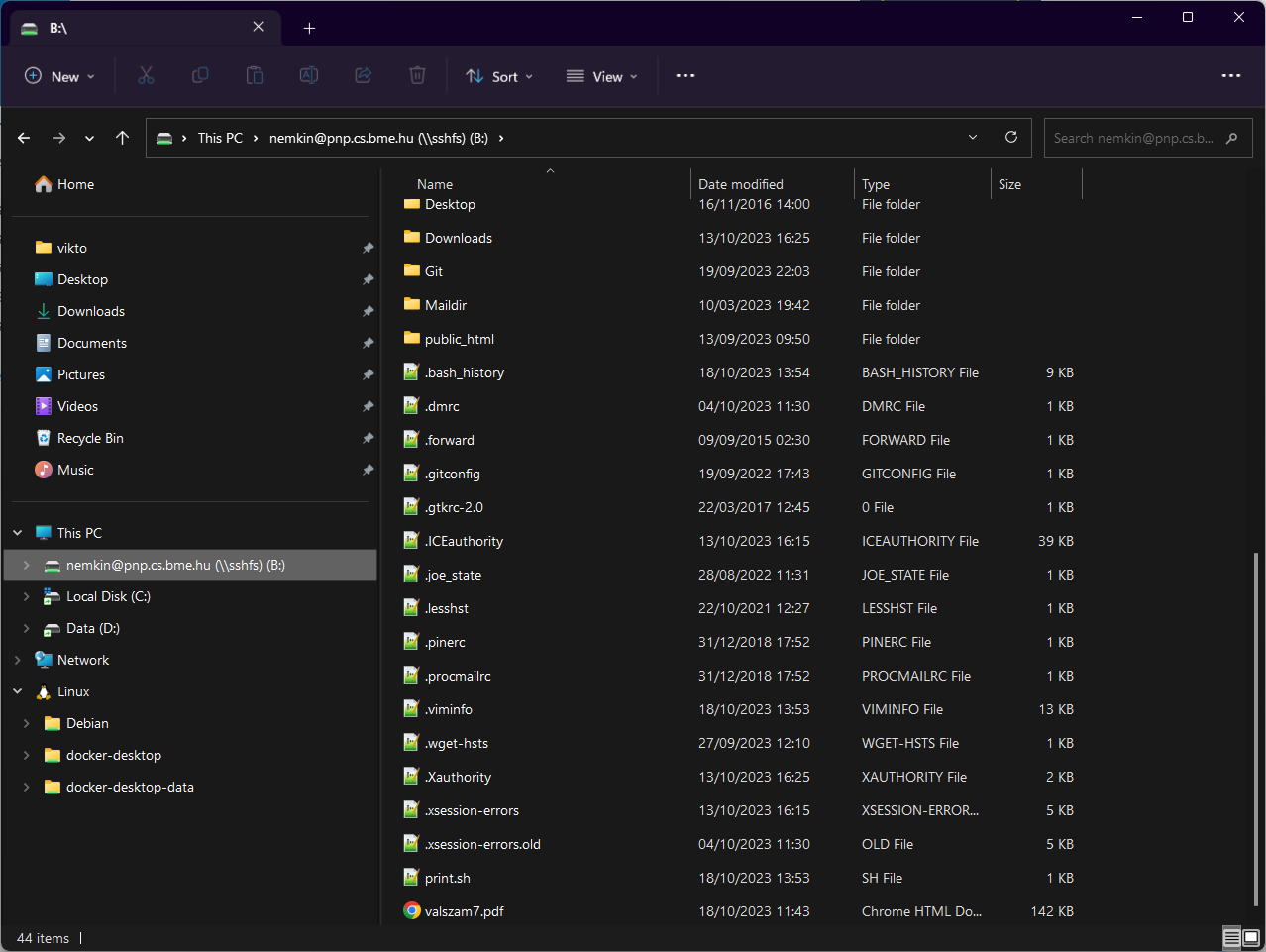

After successful connection, you'll see your department files:

Document Printing

Copy the pdf files you want printed to the network share.

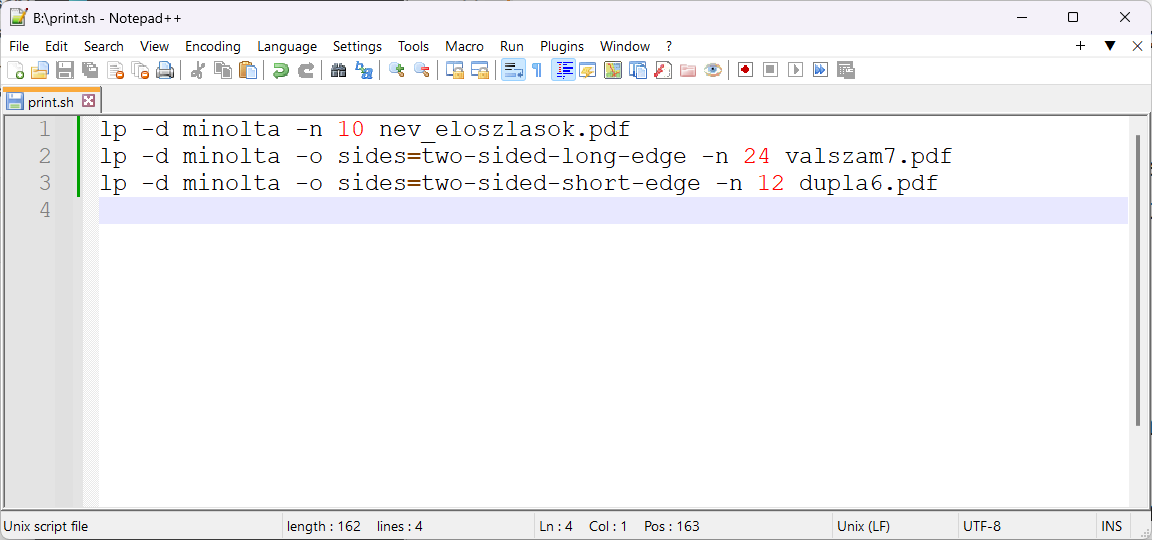

Create a print.sh file with the linux commands needed. Here are some example commands:

# Standard printing with copies
lp -d minolta -n 10 nev_eloszlasok.pdf

# Double-sided printing (long edge binding)
lp -d minolta -o sides=two-sided-long-edge -n 24 valszam7.pdf

# Double-sided printing (short edge binding)
lp -d minolta -o sides=two-sided-short-edge -n 12 dupla6.pdf

Command Options

• -d: destination (printer name)
  • minolta: Large printer in laboratory, newest, use by default
  • minolta-old: Older large printer in laboratory
  • color: Small printer in the back of the laboratory. Can print in color, use sparingly
• -o: options
  • sides=one-sided: Print on one side only (default)
  • sides=two-sided-long-edge: Double-sided printing, flip on long edge (like a book)
  • sides=two-sided-short-edge: Double-sided printing, flip on short edge (like a notepad)
• -n: number of copies to print

SSH Connection Setup

To establish SSH connections:

1. Download PuTTY installer (putty-64bit-0.79-installer.msi) from https://www.putty.org/
2. Run the installer with default settings

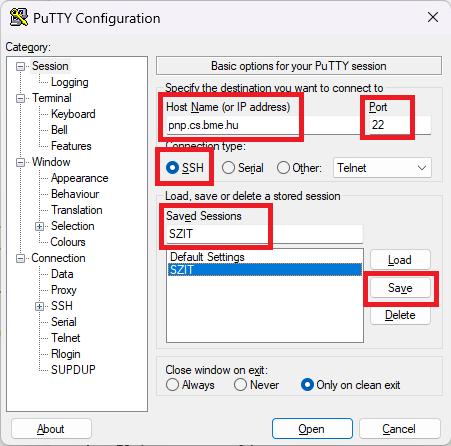

3. Launch PuTTY and enter these settings:
   • Host Name: pnp.cs.bme.hu
   • Port: 22
   • Connection type: SSH
4. Optionally, save these settings with a name (e.g., "SZIT") for quick access later

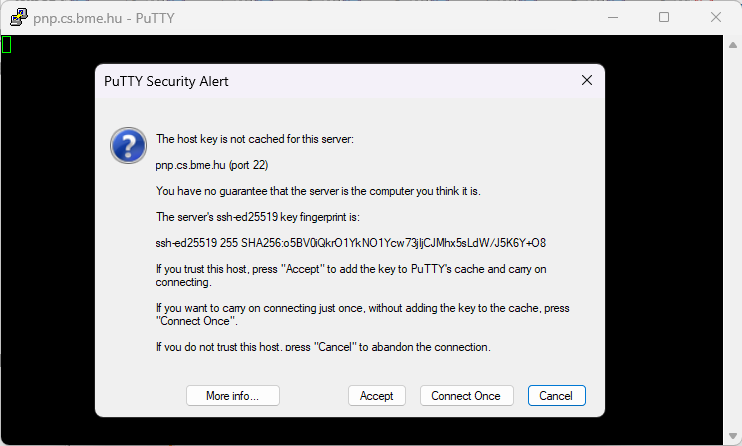

On first connection, you'll be prompted to verify the RSA key fingerprint of the server, click Accept:
